Products
SM223
Specifications
Hold. Torque
[Nm]
Current
[A]
Resistance
[ Ω]
Inductance
[mH]
Rotor Inertia
[kgm 2 x10 -4 ]
Wiring
Weight [kg]
SM223S-[K]
1,1
4,2
0,4±10%
1,2±20%
0,28
4 Leads
[K] PG19
0,65
[K] 0,75
SM223M-[K]
1,5
4,2
0,55±10%
1,2±20%
0,38
4 Leads
[K] PG19
0,80
[K] 0,90
SM223L-[K]
1,8
4,2
0,6±10%
1,8±20%
0,44
4 Leads
[K] PG19
1,00
[K] 1,10

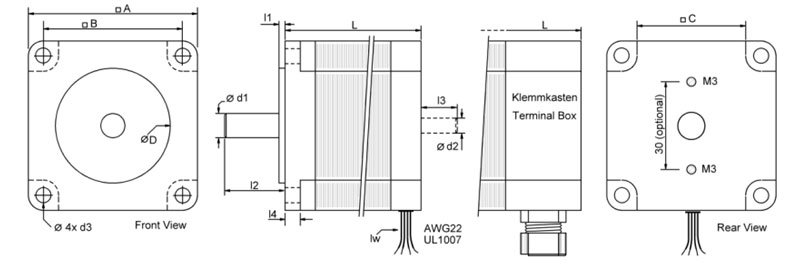

Dimensions
A
B
C
D
L
d1
d2
d3
l1
l2
l3
l4
lw
SM223S-[K]
56
47,14
38
38,1
56 [K] 85
6,35
—
5
1,6
21
—
5
300
SM223M-[K]
56
47,14
38
38,1
64 [K] 94
6,35
—
5
1,6
21
—
5
300
SM223L-[K]
56
47,14
38
38,1
76 [K] 106
6,35
—
5
1,6
21
—
5
300
Unit of measurement: mm

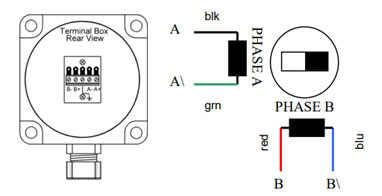

Wiring and color of Wires
